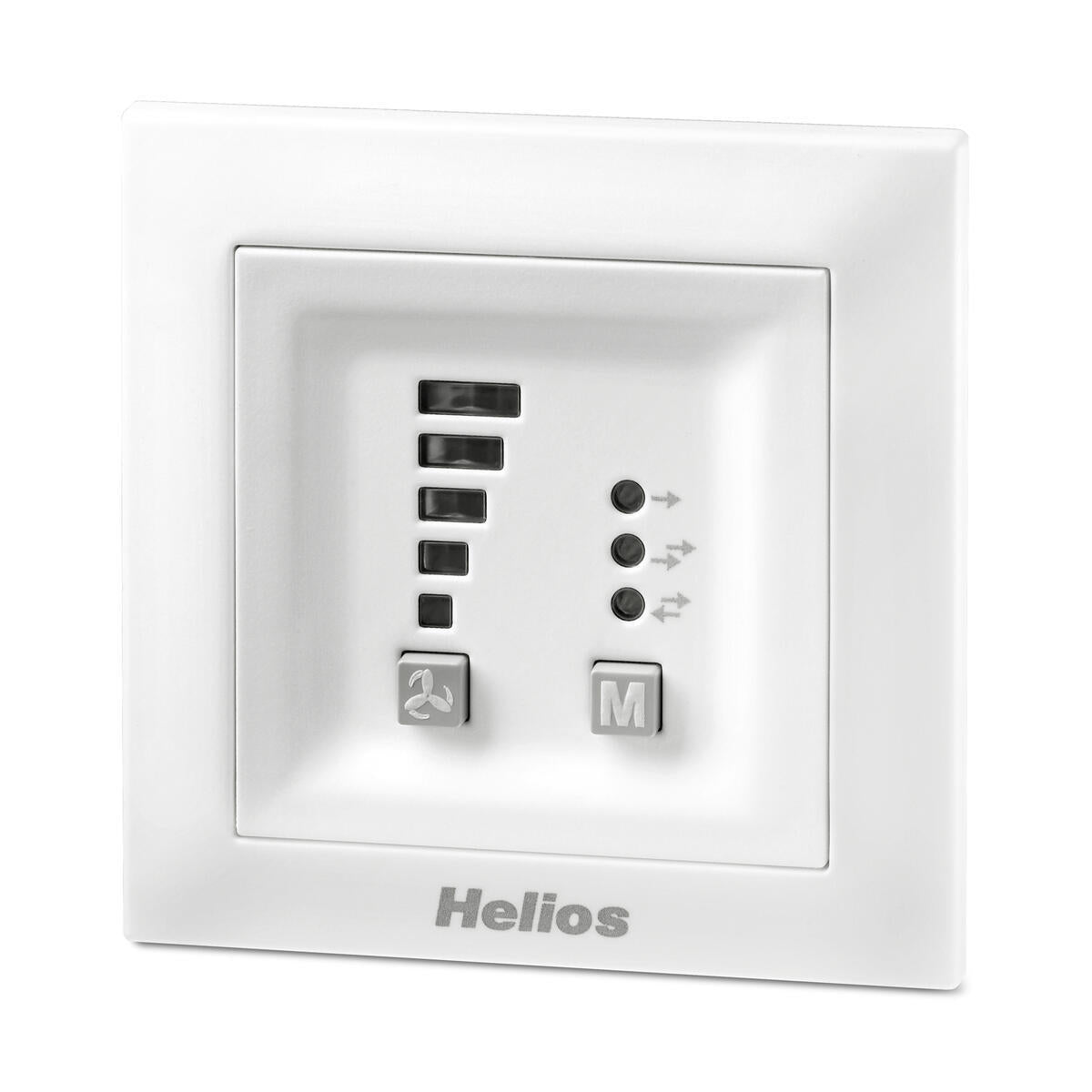

Step controller for Helios fan KWL 45 BEU 5-speed 3-operating modes with LED UP version

KWL 45 BEU
EcoVent Verso control element without
Switching power supply for decentralized
ventilation
device KWL EC 45
For installation in a flush-mounted box. (Depth: 61
mm) Electrical safety according to DIN EN
60335-1 by tests
sen. Meets EMC requirements according to
Directive 2004/108/EC (DIN EN 55014-1
interference emission for household standards
and DIN EN 5514-2 Immunity to interference according to
industry standard)
One control element can control up to 8
devices control 2-button operation for:
5 ventilation levels and 4 operating modes
(WRG, cross ventilation, supply air and exhaust air
operation) In addition, the control system
via password protection.
External, potential-free contact to
Activation of: Standby, cross ventilation,
Supply or exhaust air and party operation.
By connecting the humidity sensor
HY3, Art.No.: 1359 or HY3SI, Art.No.:
1360 (accessory) the system can
may be controlled depending on the permission.
filter change indicator, USB interface
for configuration via PC and storage
adjustment of settings, integration of
Exhaust fans via the extension
KWL 45 EM (Art. No.: 3012 /
accessories) possible
Brand: Helios Ventilatoren
Type: KWL 45 BEU
