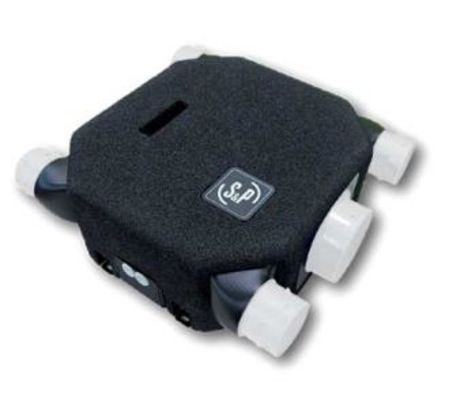

S&P OZEO FLAT H ECOWATT R8 Central exhaust air box

Rated current 0.4 A
Power (W) 54
Remark EC motor / housing made of EPP / 5x exhaust air nozzles (4x NW80 and 1x NW125) / exhaust air nozzle NW125 / any mounting position
name of the exhaust air device
article group ventilation devices
Width (mm) 459
Height (mm) 184
Depth (mm) 500
Manufacturer name: Soler & Palau
Type of ventilation: central exhaust air

-

central exhaust air box
OZEO FLAT H ECOWATT
in flat design, with
5 exhaust air nozzles (4x NW80 and
1x NW125) and an exhaust air
nozzle NW 125.
Housing is made of EPP (expand-
lated polypropylene) which
through his outstanding
acoustic and thermal insulation
characteristics stand out.
The device is designed for operation in
constant pressure mode.
Using a potentiometer
on the electronics of the device
the pressure to be maintained
set.
The device automatically adjusts
If necessary, the fan
speed.
Electronically commutated
DC motor (EC technology)
High efficiency even at
regular operation.
Manufacturer: S&P Deutschland GmbH
Type: OZEO FLAT H ECOWATT R8
