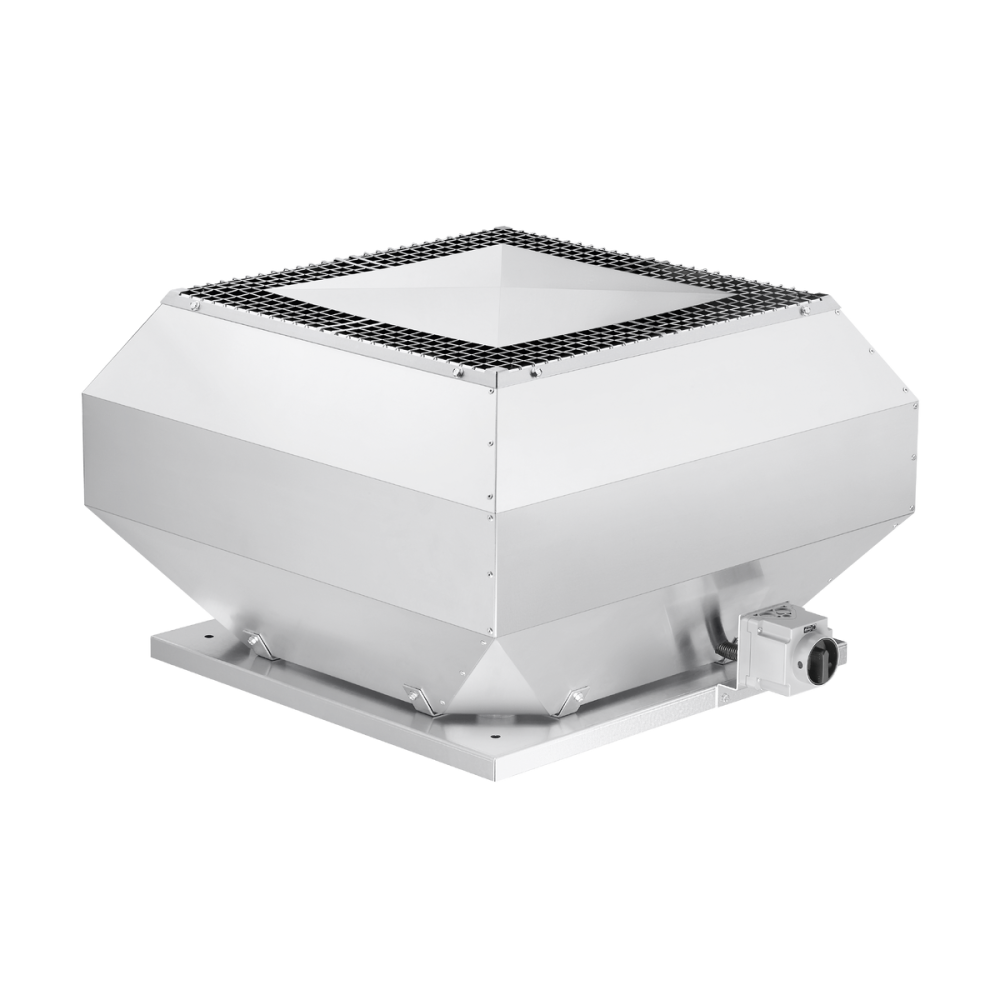

Helios roof fan VDD model series EC 400V

vertical roof fan

Vertically blowing EC roof fan with efficiency-optimized aluminum housing and newly developed high-performance radial impeller. Housing made of seawater-resistant aluminum with integrated protection against interference. Motor support plate and base plate with inlet nozzle made of galvanized steel. Base plate with threaded screws for attaching suction-side accessories (hole pattern according to DIN 24155, sheet 3). Protective grille as standard on the blow-out side in accordance with DIN EN ISO 13857. High-performance radial impeller with backward-curved blades made of plastic. Dynamically balanced according to DIN ISO 1940-1. Energy-saving, speed-controlled EC external rotor motor in a closed design in IP 54 with the highest levels of efficiency. Ball bearings with moisture protection insulation. Maintenance-free and free from radio interference. Integrated electronic temperature monitoring for EC motor and electronics. Supplied as standard with external terminal box and external maintenance switch, protection class IP 65. Stepless speed control with potentiometer or stepless speed regulation with universal control system.
