Decentralized ventilation unit with heat recovery from Cosmo

Delivery time: 1-2 working days

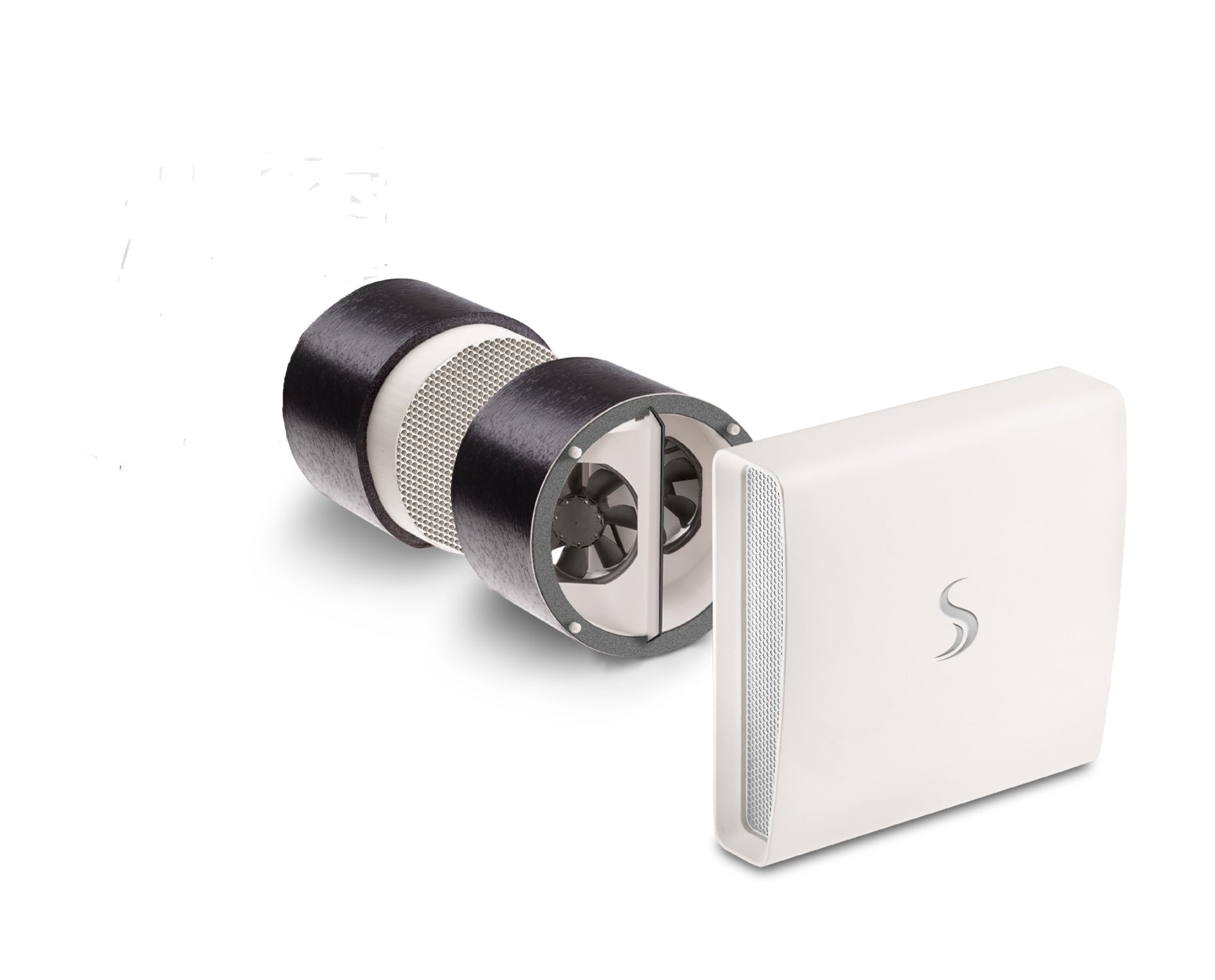

Decentralized ventilation unit
with heat recovery
Type COSMO ECO-DUO (insert)
Highly efficient decentralized
(room-by-room) single-room ventilation unit
with heat recovery according to the principle
the reversing air flow
(Regenerator) and the possibility
an exhaust air volume flow
without heat recovery as needed
Installation in round duct
with a diameter of 160 mm.
Contains ceramic storage element,
EPP foam housing, thermal insulation,
Inner panel, two G3 filters and
two EC reversing motors.
With General Building Inspectorate
Approval according to DiBt: Z-51.3-398
Technical data:
Heat recovery rate: 84%
(DIBt-certified)
Volume flow per device: 5 to 20 cbm/h,
and 45 cbm/h exhaust air operation
Power supply 12 VDC SELV
protection class IP 22
Power consumption 1.0 to 4.5 W
and 4.9 W in exhaust air mode
measuring surface sound pressure level 16.8
up to 38.1 dB(A)
Complies with EU Regulation No. 1254/2014
Energy efficiency class A.
Dimensions (H x W x D):
Minimum installation length: 300 mm
Maximum pipe length: 700 mm
inner panel: 237 x 217 x 63 mm
Brand: COSMO
